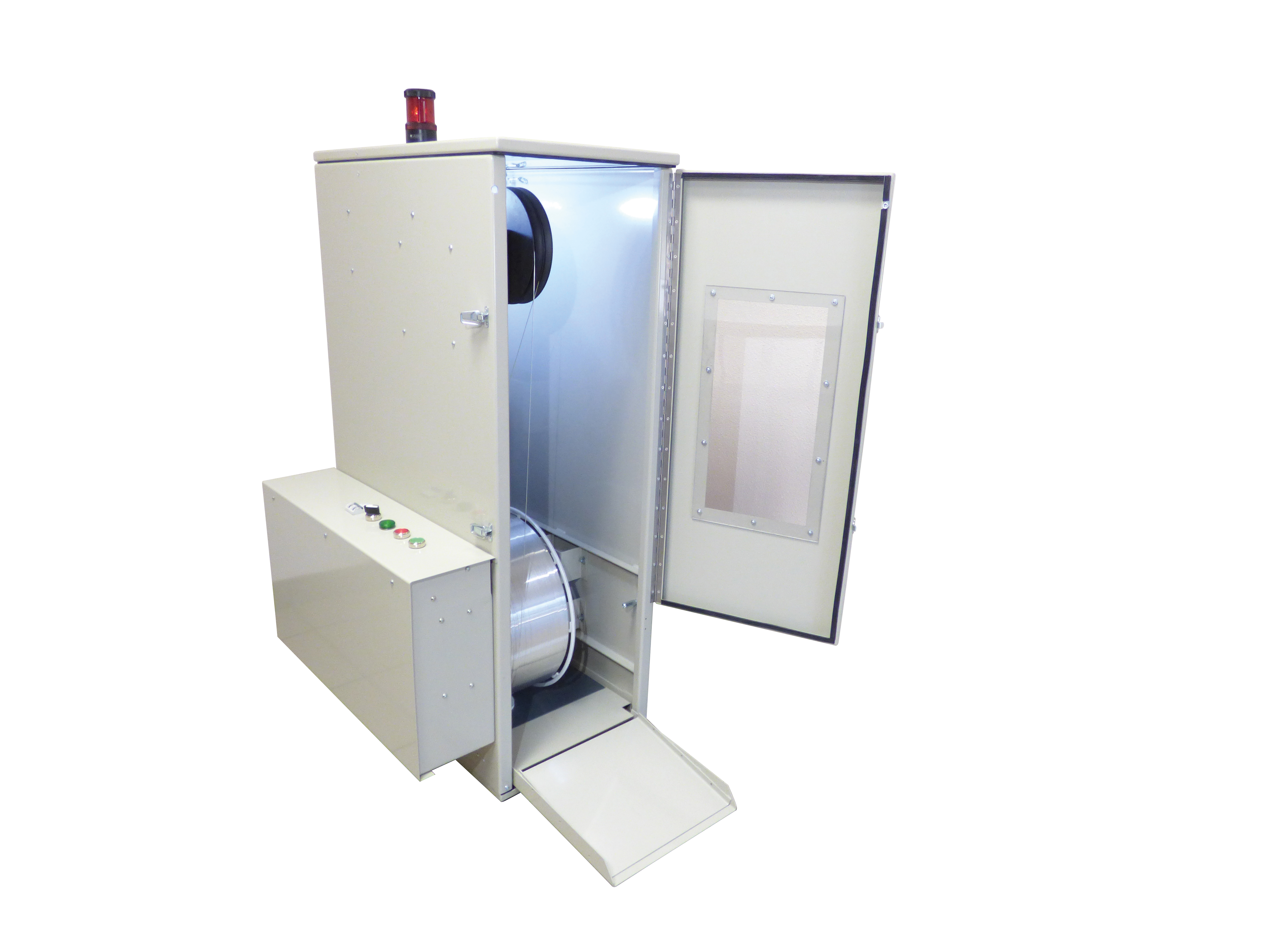

| Unwinding device DF 40 for 40 kg spools | |
|
Drive of spool |
back geared motor |
|
Reeling regulation |
Electro-mechanical system by walking beam and variator |
|
Traction |
Reduced, constant and fluid (6.6 Newton) |
|
Security |
Easy positioning of the spool, without having to use a lifting system / process |
|
Dimensions |
height 1140 mm |
|
Electricity / voltage |
220 - 240 V / 50 - 60 Hz |
|
Maximum power absorption |
0,75 KW |
|
Spool capacity |
diameter 400 mm |
|
Wind-off |
Wire feed speed from 0 to 18 m/min with automatic control |
Paragraphes
Colonne 1
Colonne 2
- Detection of end of wire by photoelectrical cell
- Inner heating from 20°C to 50°C
